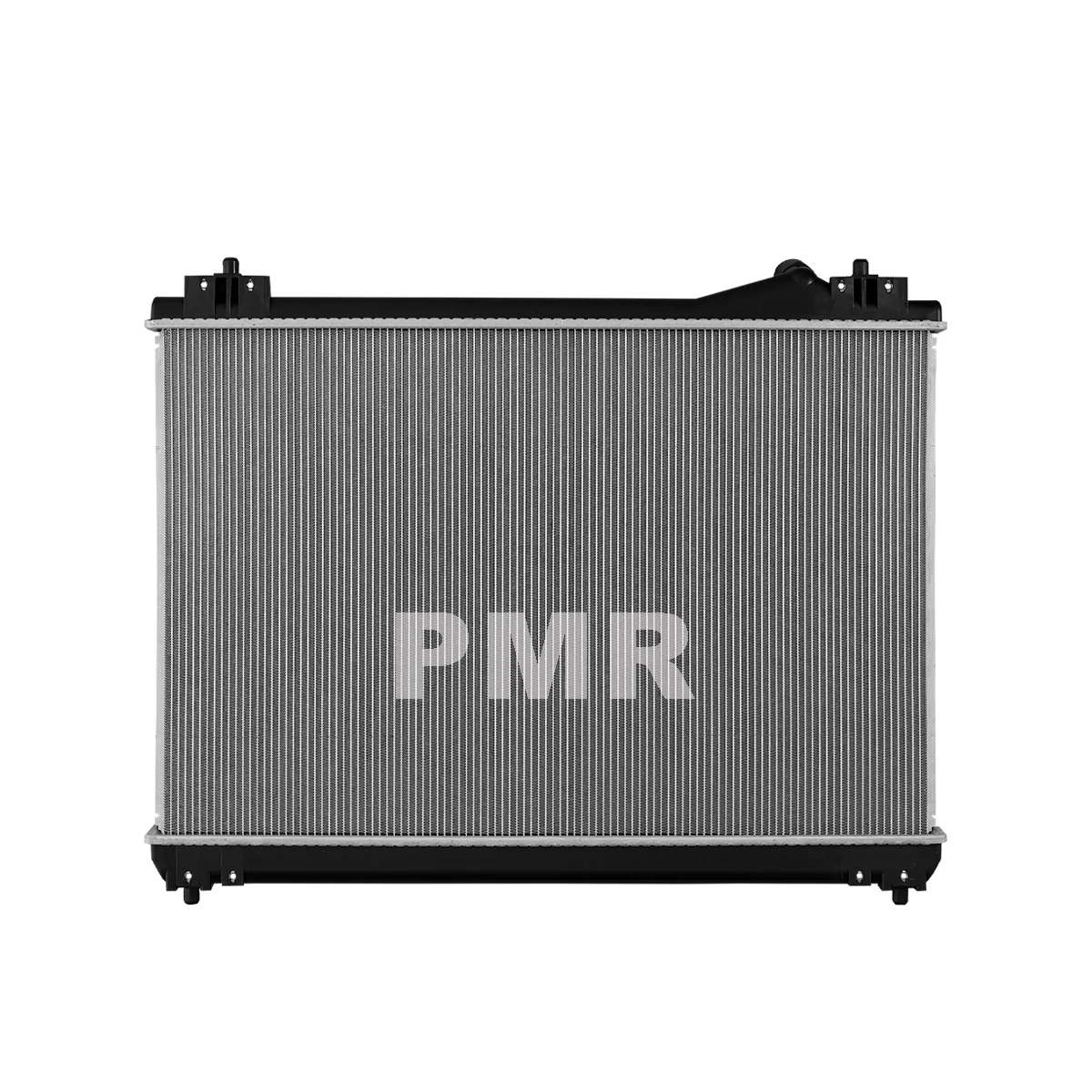

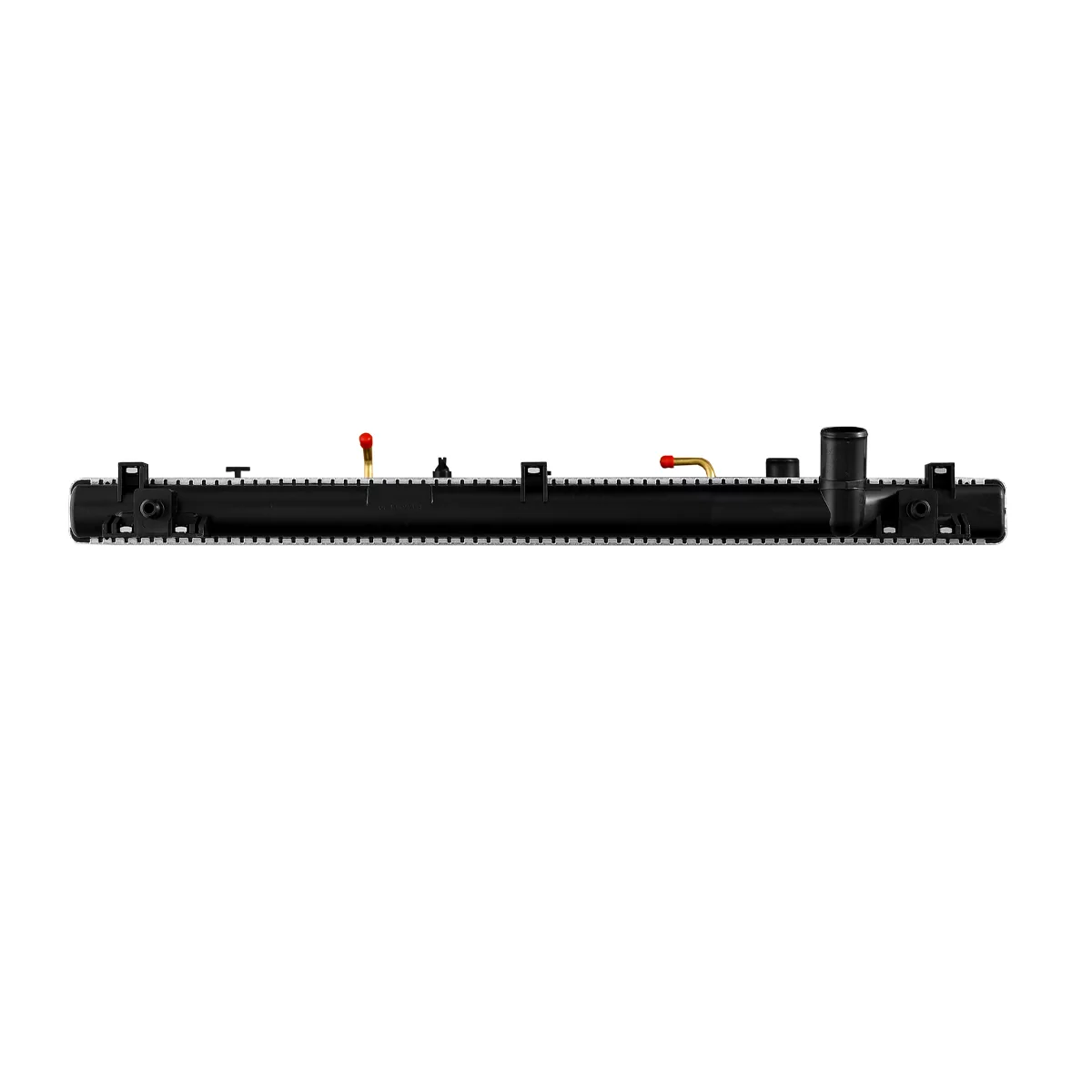

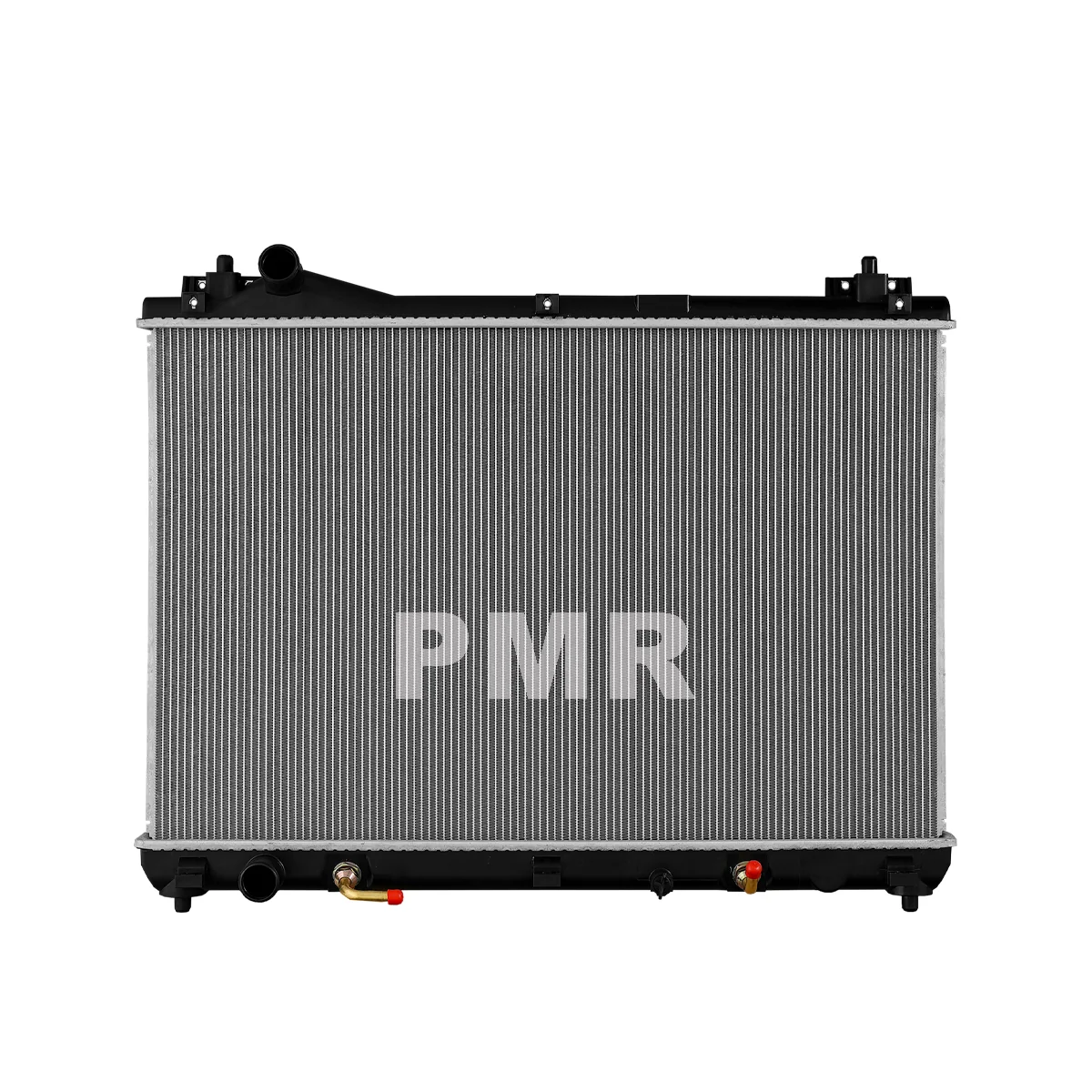

The PMR radiator for Suzuki Grand Vitara 2009 to 2017, model PM 13136, is developed by PMR (Paydar Mobaddal Radiator) to provide consistent, OEM-level cooling performance for the 2.4L L4 engine across a wide range of trims including Base, GL, GLS, Himalaya, JA, JLX, JLX-L, JX, Limited, Luxury, Premium, and Xsport.
This radiator is constructed with a crossflow aluminum core and reinforced plastic tanks, featuring a single-row design for efficient heat dissipation and weight optimization. With dimensions of 17.68 inches in height, 27.18 inches in width, and 0.62 inches in thickness, it ensures proper fitment and effective cooling even under extended use.
Equipped with a transmission oil cooler, the unit uses 1.313-inch inlet and outlet ports for consistent coolant flow. Though the radiator cap is not included, the radiator is backed by a 2-year warranty and undergoes comprehensive leak and corrosion resistance testing.
Designed for durability and thermal stability, the PM 13136 is a reliable solution for maintaining performance in Suzuki’s mid-size SUV lineup.
| Brand PMR | Item Condition New |
| Item Located Canada (Distribution Centers) | Item Number PMR 13136 |
| Core Material Aluminum | Tank Material Plastic |
| Warranty 2 Years Warranty | Radiator Cap Included NO |
| Engine Oil Cooler Included No | Transmission Oil Cooler Included YES |
| Radiator Style Crossflow | Number of Rows 1 Row |
| Core Height 17.68 In (450 Mm) | Core Width 27.18 In (690 Mm) |
| Core Thickness 0.62 In (16 Mm) | Inlet Size 1.313 In (33.4 Mm) |
| Outlet Size 1.313 In (33.4 Mm) | Radiator Color Silver |
| Years | 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 |
|---|---|
| Make | Suzuki |
| Model | Grand Vitara |
| Submodel | Base, GL, GLS, Himalaya, JA, JLX, JLX-L, JX, Limited, Luxury, Premium, Xsport |
| Engine | 2.4L L4 |
The radiator is one of the most critical components in your vehicle’s cooling system. A failing radiator can lead to engine overheating and serious damage. Our radiators are designed for long-lasting efficiency and optimal heat dissipation, ensuring your engine stays at the right temperature.
All our radiators come with a FREE radiator cap, providing added value and convenience for our customers.
