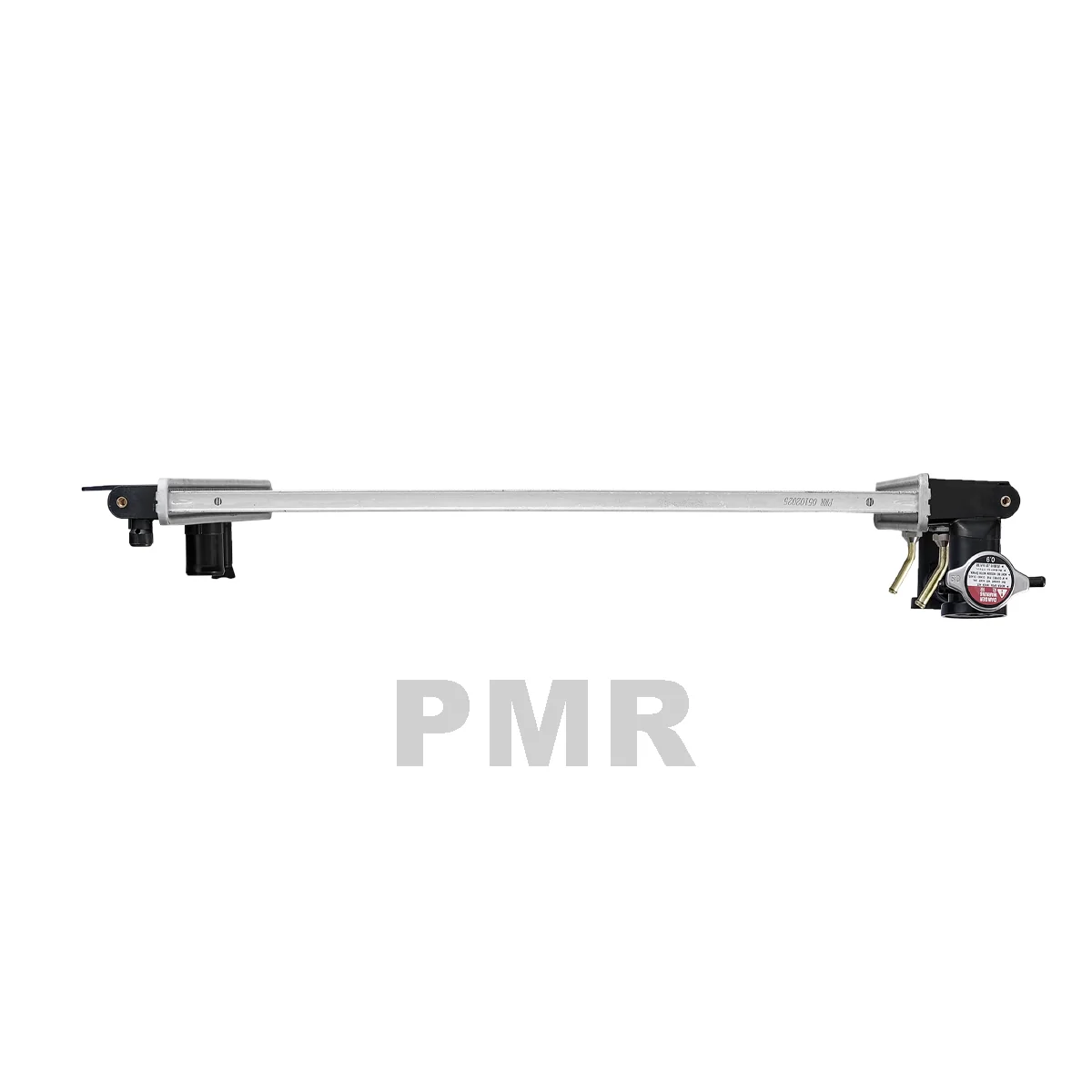

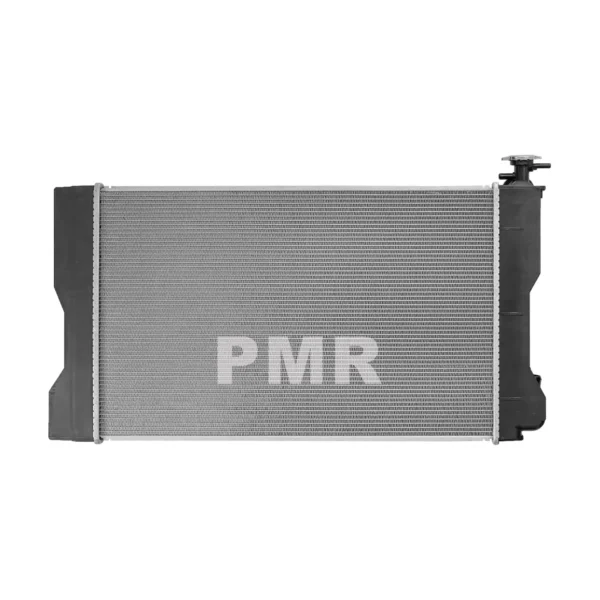

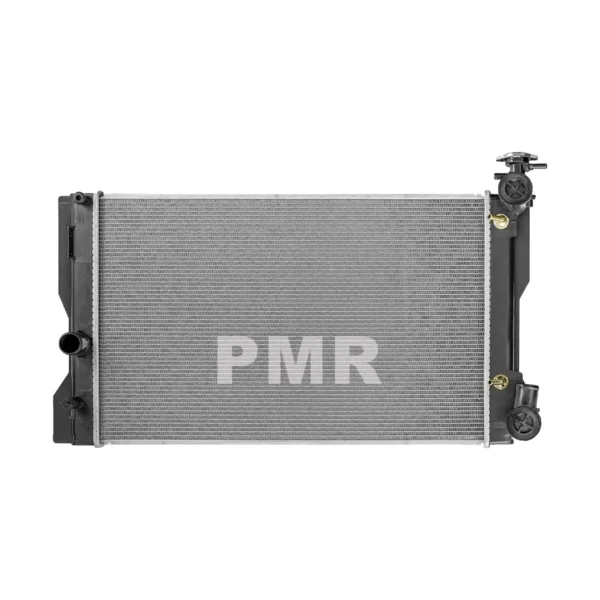

The PMR radiator for Corolla, Matrix, and Pontiac Vibe (2009–2019), model PM 13106, is purpose-built by PMR (Paydar Mobaddal Radiator) to support the thermal needs of 1.8L L4 engines found across a wide range of trims, including CE, LE, S, XLE, XRS, GT, and AWD variants.
This radiator features a crossflow aluminum core paired with high-strength plastic tanks, ensuring reliable operation and efficient cooling in compact engine bays. Its single-row design is optimized for rapid heat dissipation, with core dimensions measuring 23.63 inches high, 14.94 inches wide, and 0.81 inches thick.
The PM 13106 includes a built-in transmission oil cooler and features 1.31-inch inlet and outlet ports for precise fluid flow. It comes complete with a factory radiator cap and is backed by a 2-year warranty. Each unit undergoes strict leak and corrosion testing to meet OEM durability and fitment standards.
Designed for performance and long-term reliability, this model delivers a direct-fit solution for daily driving across Toyota and Pontiac’s compact vehicle lineup.
| Brand PMR | Item Condition New |
| Item Located Canada (Distribution Centers) | Item Number PMR 13106 |
| Core Material Aluminum | Tank Material Plastic |
| Warranty 2 Years Warranty | Radiator Cap Included YES |
| Engine Oil Cooler Included No | Transmission Oil Cooler Included YES |
| Radiator Style Crossflow | Number of Rows 1 Row |
| Core Height 23.63 In (600 Mm) | Core Width 14.94 In (380 Mm) |
| Core Thickness 0.81 In (22 Mm) | Inlet Size 1.31 In (33 Mm) |
| Outlet Size 1.31 In (33 Mm) | Radiator Color Silver |
| Years | 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 |
|---|---|
| Make | Pontiac, Toyota |
| Model | Corolla, Matrix, Vibe |
| Submodel | AWD, Base, CE, GT, LE, S, XLE, XRS |
| Engine | 1.8L L4 |
The radiator is one of the most critical components in your vehicle’s cooling system. A failing radiator can lead to engine overheating and serious damage. Our radiators are designed for long-lasting efficiency and optimal heat dissipation, ensuring your engine stays at the right temperature.
All our radiators come with a FREE radiator cap, providing added value and convenience for our customers.
